Model 532
1/4-Inch Magnetic
Tape Conditioner
|
|
FEATURES
-
Efficiently cleans and conditions 1/4-inch magnetic tape
-
Four automatically advancing cleaning
tissue stations clean both sides of the tape
-
Easy Operation
-
Handles 7-inch to 10.5-inch tapes
-
NAB, CINE and AEG (pancake) hubs available
-
Hub Field Conversion Kits available
|
The BOW Model 532
was created to combine an efficient, safe cleaning operation with fast precision
stacking of 1/4-inch tape on a wide variety of reels. The 532 was designed to
handle reel sizes from 7-inches to 10 1/2-inches in diameter for NAB, CINE or
AEG (pancake) reel hubs. Field conversion kits are also available if more than on hub
style is needed.
Tissue cleaning stations and a sapphire blade, proven time and again
to be the most effective cleaning method, remove debris from both sides of the
tape. Downstream, a uniquely designed packwheel delivers a straight, perfectly
centered stack on both plastic and metal reels.
Tape speed it typically 200 ips
(inches per second). However if tape stiction is an issue, we now offer the Selectable Speed Modification
(SSM) option that allows the tape speed to be lowered and selectable between 60 ips and 120
ips.
|
|
|

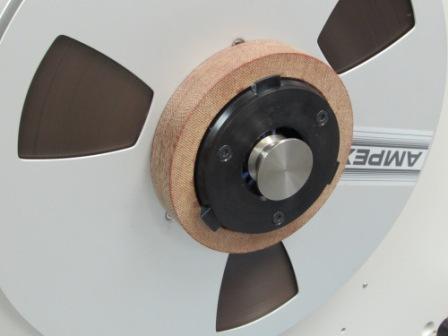

NAB Reels
|

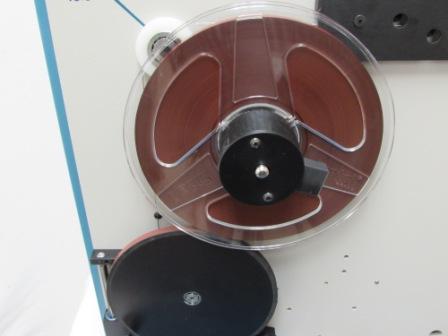

CINE Reels |
.

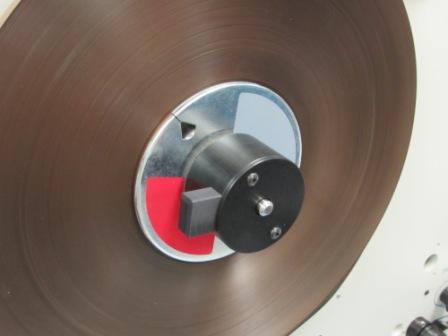

AEG Pancake
Reels
|
|
SPECIFICATION
|
Dimensions |
20" H x 24" W x 17.25" D
overall |
Weight |
50 lbs. |
Power |
100-240 VAC, 50/60 Hz, 3.25 Amps (Please Specify). Power cord for any
country available |
Reel Capacity |
1/4-inch on 7 to 10.5-inches diameter reels. CINE, NAB and
CCIR reel hubs available. Conversion kits available (see options below) |
Tape Tension |
Constant, adjustable from 3 to 5 ounces |
Tape Speed |
200 ips (inches per second) " .5%.
SSM Option: 60 or 120 ips selectable |
Hubs & Guides |
Precision locating and positive locking, and maintenance free guides,
rotating on ultra precision bearings to provide minimum tape wrap and
maximum guiding. |
Footage Counter |
4 digit LED, 1% accuracy, 1 ft. resolution. |
Controls |
POWER, FORWARD, STOP and CYCLE |
Indicators |
FORWARD, STOP, CYCLE, FOOTAGE COUNTER display, BLADE LIFE indicators
(NEW, 1/3, REPLACE), REPLACE BATTERY indicator |
Brakes |
Failsafe electronic |
Pack Roller |
Precision disc that precisely guides and presses air from tape layers
to provide a uniform stack on the take-up reel (wind direction) |
Stack Quality |
Precision stack that meets requirements of NSA L14-2. Accomplished by a
large diameter packwheel (pack roller) with 180° wrap |
Tape Low Sensing |
Automatically determines hub diameter and stops tape with a
selectable amount of tape left on the supply reel |
Tape Absence Sensing |
Stops tape drive when tape is not present in tape path |
ORDERING INFORMATION
|
Model 532 |
Cleaner/Winder for 1/4-inch tape. |
Note:
The unit comes with one hub type installed (CINE or NAB). Additional hub
styles require conversion kit listed below. |
OPTIONS
|
CKA |
Conversion
Kit to Precision NAB hubs |
AEG |
Conversion
Kit to PrecisIon AEG (pancake) hubs (Left Hub Only). Requires CINE hubs
installed. |
CINE |
Conversion
Kit to Precision CINE hubs (5/16-inch Spindle Hubs) |
SSM |
Selectable Speed
Modification |
|
|
|
